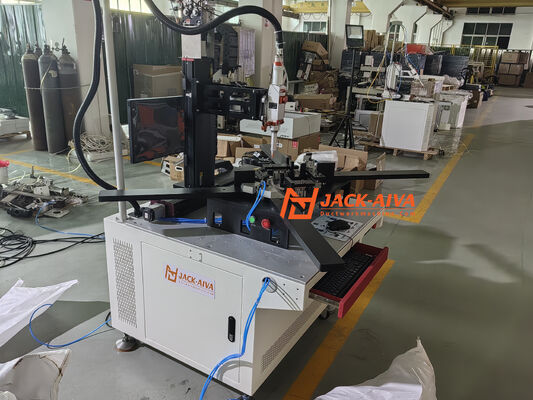

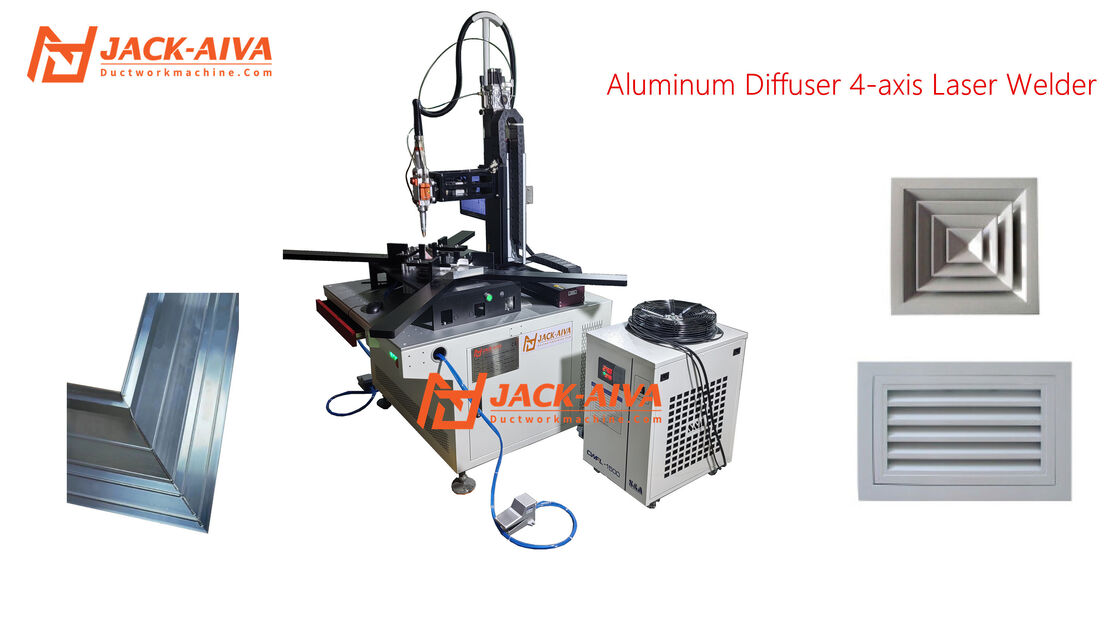

Professional 4-Axis Dual-Station Fiber Laser Welding System for HVAC Air Grilles & Diffusers
Our HVAC Aluminum Diffuser Frame Laser Welding Machine is specially designed for precision corner welding of aluminum air grille and diffuser frames used in HVAC ventilation systems.
The machine adopts an advanced 4-axis fiber laser welding system combined with a dual-station working structure, allowing continuous loading and welding operations to significantly improve production efficiency and reduce idle time.
Equipped with a 1500W fiber laser source, the machine delivers stable welding performance, clean weld appearance, low thermal deformation, and high consistency for various aluminum diffuser frame profiles.
This equipment is widely suitable for manufacturing:
- Aluminum air diffusers
- HVAC air grilles
- Linear slot diffusers
- Return air grilles
- Ventilation outlet frames
- Decorative aluminum ventilation products
Main Features
Dual-Station High-Efficiency Design
The machine is equipped with left and right working stations sharing one laser welding head.
While one side is under welding operation, the operator can simultaneously load or unload products on the opposite station, greatly improving production efficiency and reducing waiting time.
The machine is designed with user-friendly operation logic and simple fixture positioning, allowing operators to quickly learn and operate the system efficiently.
Precision 4-Axis Laser Welding System
The 4-axis motion control system ensures accurate and stable corner welding for aluminum diffuser frames with excellent repeatability and welding consistency.
Suitable for various frame sizes and profile structures.
1500W Fiber Laser Source
Adopting a high-quality fiber laser generator featuring:
Stable laser output
Fast welding speed
Low maintenance cost
Long service life
Energy-efficient operation
The laser welding process produces smooth weld seams with minimal polishing requirements.
Excellent Welding Quality for Aluminum Profiles
Compared with traditional TIG welding, the laser welding process offers:
Lower heat deformation
Cleaner welding appearance
Faster production speed
Reduced labor dependency
Higher production consistency
Especially suitable for thin-wall aluminum HVAC profiles.
Main Parameters
| Item |
Specifications |
| Fiber Laser Power |
1500W |
| Welding Head |
f=200mm |
| Welding control system |
CNC2000 |
| Welding motion control software |
Laser welding software |
| Servo motor |
SV-X2MH040A; 3sets |
| Servo driver |
HM-Y7EA040A-S 3Set |
| X axis |
600mm |
| Z axis |
500mm |
| A axis (Welding head) |
Plus or minus 45 degrees |
| Steel wire Auto feeder |
0.8-1.6 |

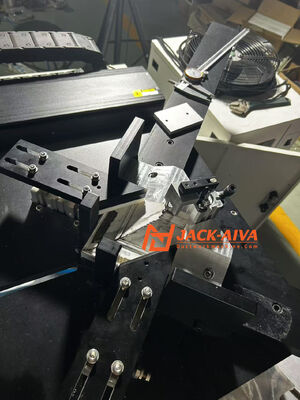

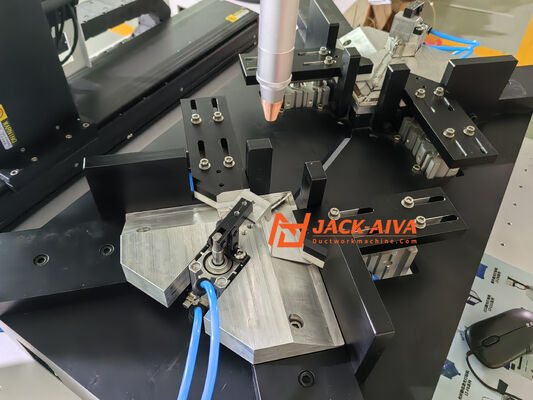

| Double station welding platform |
Right angle welding fixture |
| Water Cooler |
Dual temperature and dual control |
| Dimension(L*W*H) |
1000*1100*1800mm |
| Weight (Kg) |
400KG |
Applications
This machine is mainly used in HVAC air diffuser and air grille manufacturing industries for aluminum frame corner welding applications.
Suitable for:
HVAC product manufacturers
Air grille factories
Aluminum ventilation product suppliers
Commercial ventilation system manufacturers
Optional Configuration
Different fixture sizes
Customized frame dimensions
Automatic positioning system
Fume extraction system
Vision alignment system
Safety enclosure options
